DPDT momentary snap-action switch with a top roller plunger actuator, designed for panel mounting. Features screw terminals for termination and a 6A current rating at 125VDC or 120VAC, with a maximum AC rating of 600V and DC rating of 250V. Operates within a temperature range of -25°C to 85°C, boasting IP67, waterproof, and dust-tight ratings. Mechanical life extends to 15,000,000 cycles, with an operating force of 160N and overtravel of 45mm. RoHS compliant for environmental considerations.
Current Rating6A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell GLAB20C technical specifications.
General
Actuator Type
PLUNGER
Contact Type
Snap Action
Current Rating
6A
Depth
42mm
Length
145.8mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mechanical Life
15000000Cycles
Mount
Chassis Mount, Screw
Operating Force
160N
Operating Position
480mm
Orientation
Straight
Overtravel
45mm
Package Quantity
1
Packaging
Bulk
Pretravel
254mm
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
GLS
Switch Function
On-Mom
Termination
Screw
Throw Configuration
DPDT
Voltage Rating (AC)
120V
DC Rated Voltage
125V
Width
42mm
Compliance
RoHS
Compliant
Datasheet
Honeywell GLAB20C Datasheet
Download the complete datasheet for Honeywell GLAB20C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

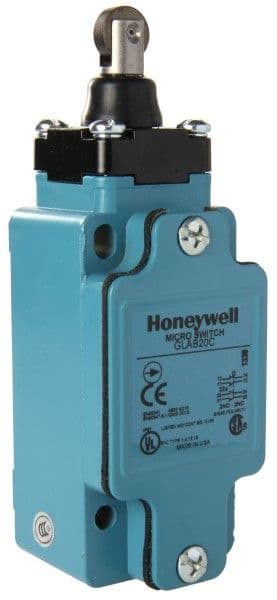

Product Images
