SPDT momentary snap action switch featuring a 10A contact current rating and 250VDC voltage rating. Designed with a top roller plunger actuator, this switch offers a mechanical life of 15,000,000 cycles and operates within a temperature range of -40°C to 85°C. Mountable via chassis or screw, it boasts IP67 and IP66 ratings for waterproof and dust-tight performance, with screw termination. Approvals include UL, CSA, CE, and CCC.
Package300
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell GLEB01C technical specifications.
General
Approvals
UL, CSA, CE, CCC
Package/Case
300
Contact Current Rating
10A
Contact Type
Snap Action
Current Rating
10A
Depth
30mm
Height
95mm
Length
65mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mechanical Life
15000000Cycles
Mount
Chassis Mount, Screw
Operating Force
13N
Orientation
Straight
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight, IP66
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GLS
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
125V
Width
65mm
Compliance
RoHS
Compliant
Datasheet
Honeywell GLEB01C Datasheet
Download the complete datasheet for Honeywell GLEB01C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

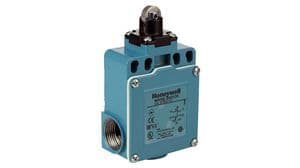

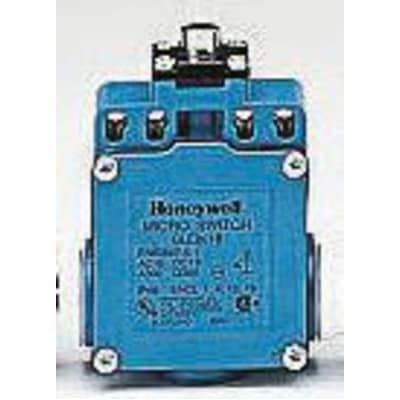

Product Images
