Analog voltage output relative humidity sensor with 3.5% accuracy, operating from 4V to 5.8V DC. Features a 15s response time and a wide operating temperature range of -40°C to 85°C. Packaged in a 3-pin SIP for through-hole mounting, with dimensions of 21.66mm length, 4.27mm width, and 2.03mm height, and a 0.1-inch lead pitch. RoHS compliant with a nominal supply current of 500µA.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell HIH-4000-001 technical specifications.
General
Accuracy
3.5%
Package/Case
SIP
Height
2.03mm
Lead Pitch
0.1inch
Length
21.66mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.8V
Min Supply Voltage (DC)
4V
Max Supply Voltage
5.8V
Min Supply Voltage
4V
Mount
Through Hole
Nominal Supply Current
500uA
Operating Supply Current
200uA
Output Type
Analog Voltage, Analog, Voltage
Package Quantity
5
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
15s
RoHS Compliant
Yes
Series
HIH-4000
Termination
SMD/SMT
Width
4.27mm
Compliance
RoHS
Compliant
Datasheet
Honeywell HIH-4000-001 Datasheet
Download the complete datasheet for Honeywell HIH-4000-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

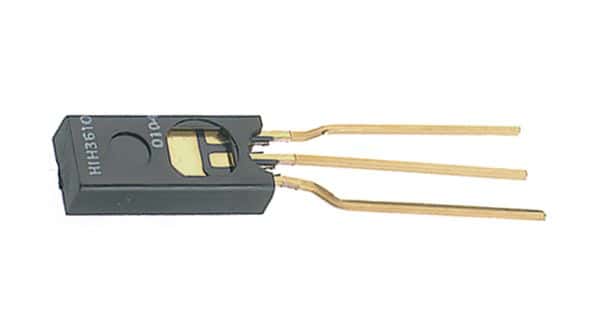

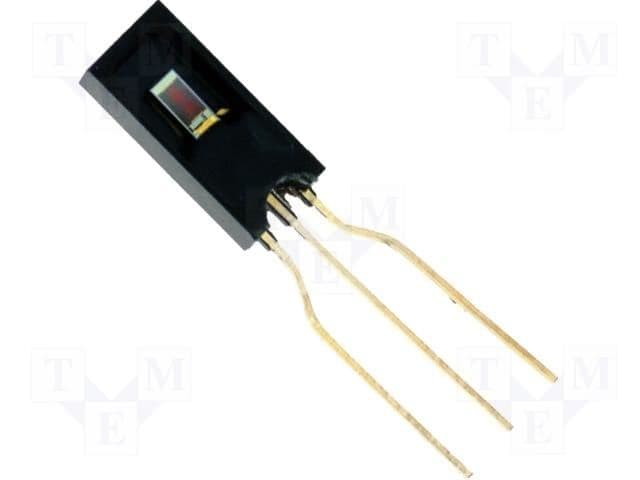

Product Images
