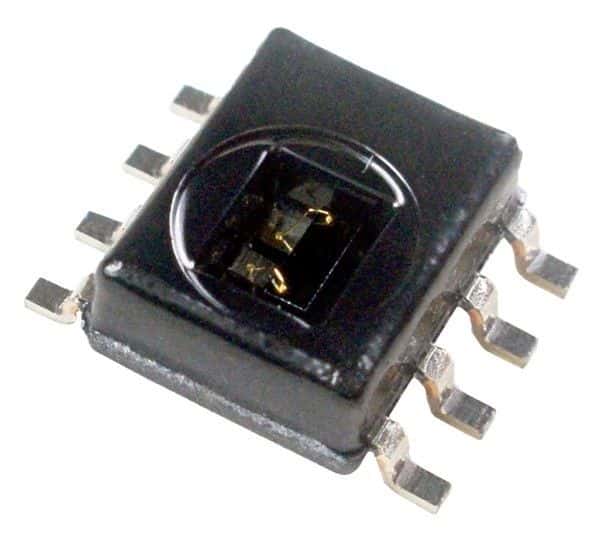

The HIH6030-000-001 is a temperature sensor from Honeywell's HumidIcon series, offering 14-bit resolution and SPI interface. It operates within a temperature range of -40°C to 100°C and is supplied with a voltage between 2.3V and 5.5V, drawing a nominal current of 650uA and an operating current of 750uA. The sensor is available in a surface mount SOIC package with dimensions of 1.905mm height, 3.9mm width, and 4.9mm length. The HIH6030-000-001 is RoHS compliant and packaged in tape and reel quantities of 400.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell HIH6030-000-001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 4.5% |
| Package/Case | SOIC |
| Height | 1.905mm |
| Interface | SPI |
| Length | 4.9mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Supply Current | 650uA |
| Operating Supply Current | 750uA |
| Output Type | Digital, SPI |
| Package Quantity | 400 |
| Packaging | Tape and Reel |
| Resolution | 14b |
| Response Time | 6s |
| RoHS Compliant | Yes |
| Sensor Type | Temperature |
| Series | HumidIcon™, HIH-6000 |
| Width | 3.9mm |
| RoHS | Compliant |
Download the complete datasheet for Honeywell HIH6030-000-001 to view detailed technical specifications.
