Digital temperature sensor with I2C interface, offering 14-bit resolution and ±2% accuracy across a -40°C to 125°C operating range. This surface-mount component, housed in an SOIC package, operates from 2.3V to 5.5V DC with a typical supply current of 650µA. Features include a 6-second response time and digital output.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell HIH8130-021-001S technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Height
1.905mm
Interface
I2C, Serial
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.3V
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Nominal Supply Current
650uA
Operating Supply Current
650uA
Operating Supply Voltage
3.3V
Output Type
Digital, I2C
Package Quantity
1
Packaging
Bulk
Primary Type
TEMPERATURE SENSOR
Resolution
14b
Response Time
6s
RoHS Compliant
Yes
Sensor Type
Temperature
Series
HumidIcon™, HIH-8000
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Honeywell HIH8130-021-001S Datasheet
Download the complete datasheet for Honeywell HIH8130-021-001S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

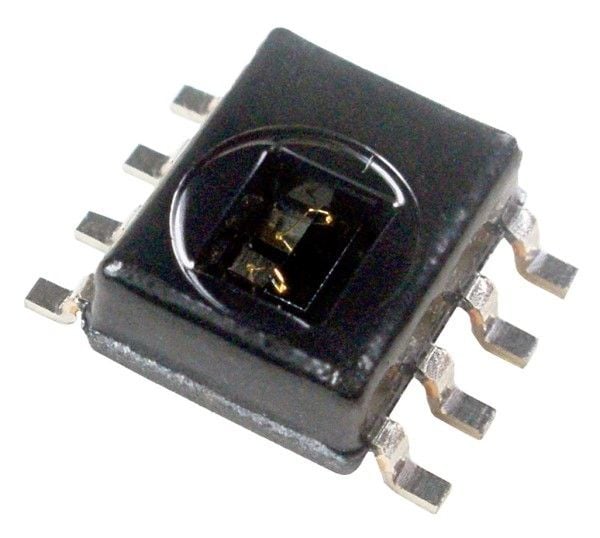

Product Images
