Surface mount temperature sensor with 14-bit resolution and 2% accuracy. Features I2C and serial interface, operating from 2.3V to 5.5V DC with a nominal supply current of 650uA. This SOIC package component offers a wide operating temperature range of -40°C to 125°C and a 6-second response time. Packaged on tape and reel, it is RoHS compliant.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell HIH8131-021-001S technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Height
1.905mm
Interface
I2C, Serial
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
2.3V
Max Supply Voltage
5.5V
Min Supply Voltage
2.3V
Mount
Surface Mount
Nominal Supply Current
650uA
Operating Supply Current
650uA
Operating Supply Voltage
3.3V
Output Type
I2C, Digital
Package Quantity
1
Packaging
Tape and Reel
Primary Type
TEMPERATURE SENSOR
Resolution
14b
Response Time
6s
RoHS Compliant
Yes
Sensor Type
Temperature
Series
HumidIcon™, HIH-8000
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Honeywell HIH8131-021-001S Datasheet
Download the complete datasheet for Honeywell HIH8131-021-001S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

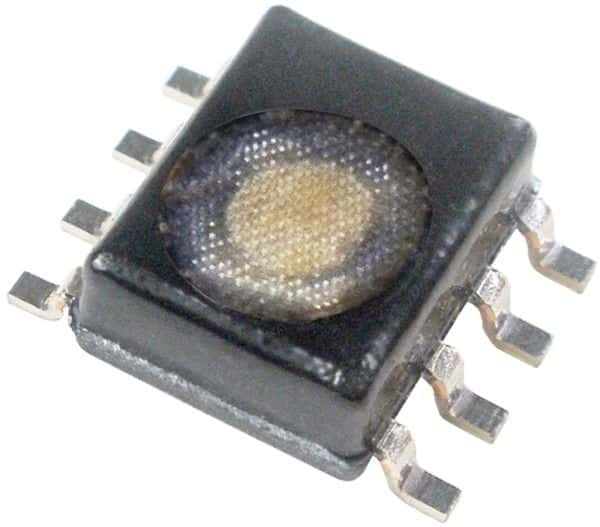

Product Images
