Technical Specifications
Honeywell HOA1888-011 technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Fall Time
15us
Forward Current
50mA
Max Breakdown Voltage
30V
Max Collector Current
30mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
100mW
Mount
Snap in, Surface Mount
Number of Channels
1
Number of Elements
1
Output Configuration
Phototransistor
Output Type
Phototransistor
Package Quantity
1
Packaging
Bulk
Power Dissipation
100mW
Response Time
15us
Reverse Breakdown Voltage
3V
RoHS Compliant
Yes
Sensing Distance
0.472inch
Compliance
RoHS
Compliant
Datasheet
Honeywell HOA1888-011 Datasheet
Download the complete datasheet for Honeywell HOA1888-011 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

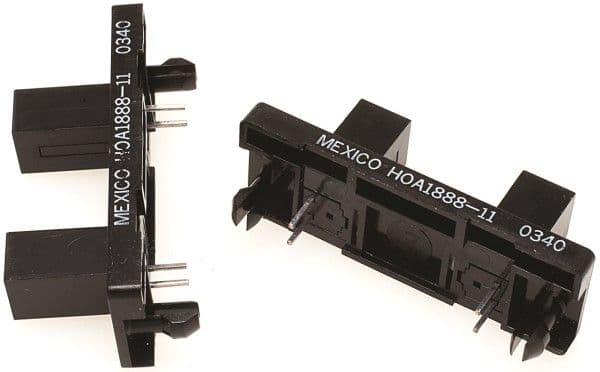

Product Images
