Honeywell
HSCDANN1.6BASA5
Peizoresistive Sensor, Absolute, 0Psi Min, 23.206Psi Max, 0.25%, Rectangular, Through Hole Mount, ROHS COMPLIANT, CERAMIC, DIP-8
PackageDIP
Current2mA
Quick Jump:
Technical Specifications
Honeywell HSCDANN1.6BASA5 technical specifications.
General
Accuracy
0.25%
Package/Case
DIP
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
58.02PSI
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Nominal Supply Current
2mA
Operating Pressure
23.21PSI
Operating Supply Voltage
5V
Output Type
SPI, Digital
Port Style
Barbed
Pressure Type
Absolute
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® HSC
Supply Current
2mA
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCDANN1.6BASA5 Datasheet
Download the complete datasheet for Honeywell HSCDANN1.6BASA5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

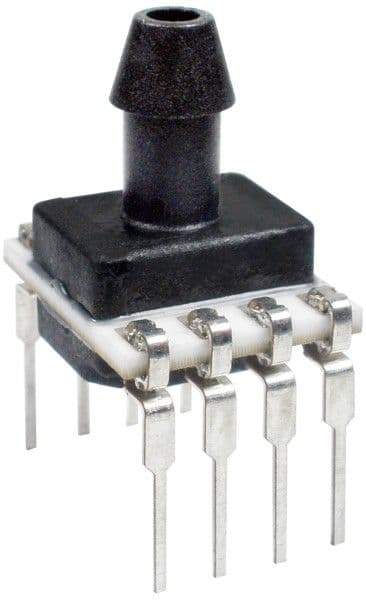

Product Images
