Board mount pressure sensor with a 0 bar to 1.6 bar (23.21 PSI) gauge pressure range and 0.25% accuracy. Features SPI digital output, 1ms response time, and operates within a -20°C to 85°C temperature range. Supplied by 3V to 3.6V with a nominal 1.6mA current draw. Packaged in an 8-pin SMD/SMT module with barbed port style and PCB termination.
PackageSMD/SMT
Current1.6mA
Quick Jump:
Technical Specifications
Honeywell HSCMAND1.6BGSA3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
58.02PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Nominal Supply Current
1.6mA
Operating Pressure
23.21PSI
Operating Supply Voltage
3.3V
Output Type
SPI, Digital
Packaging
Bulk
Port Style
Barbed
Pressure Type
Gauge
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® HSC
Supply Current
1.6mA
Termination
PCB
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCMAND1.6BGSA3 Datasheet
Download the complete datasheet for Honeywell HSCMAND1.6BGSA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

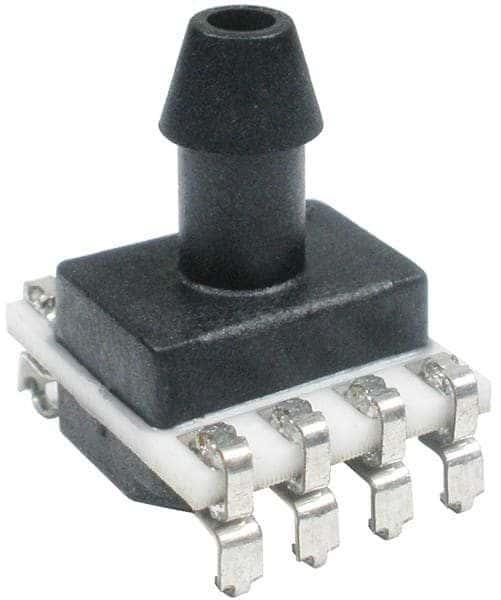

Product Images
