Absolute pressure sensor with a 0.25% accuracy, designed for surface mount applications. Features a rectangular ceramic package with SMT-8 termination, operating across a pressure range of 0 to 23.21 PSI, with a maximum rating of 58.02 PSI. Offers a 1ms response time and digital SPI output, powered by a 3.3V supply voltage (3V to 3.6V range) and consuming a nominal 1.6mA current. Operates within a temperature range of -20°C to 85°C and is RoHS compliant.
PackageSMD/SMT
Current1.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell HSCMRNN1.6BASA3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Height
5.8mm
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
58.02PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
1.6mA
Operating Pressure
23.21PSI
Operating Supply Voltage
3.3V
Output Type
SPI, Digital
Port Style
Barbed
Pressure Type
Absolute
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® HSC
Supply Current
1.6mA
Termination
SMD/SMT
DC Rated Voltage
3.3V
Width
13.3mm
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCMRNN1.6BASA3 Datasheet
Download the complete datasheet for Honeywell HSCMRNN1.6BASA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

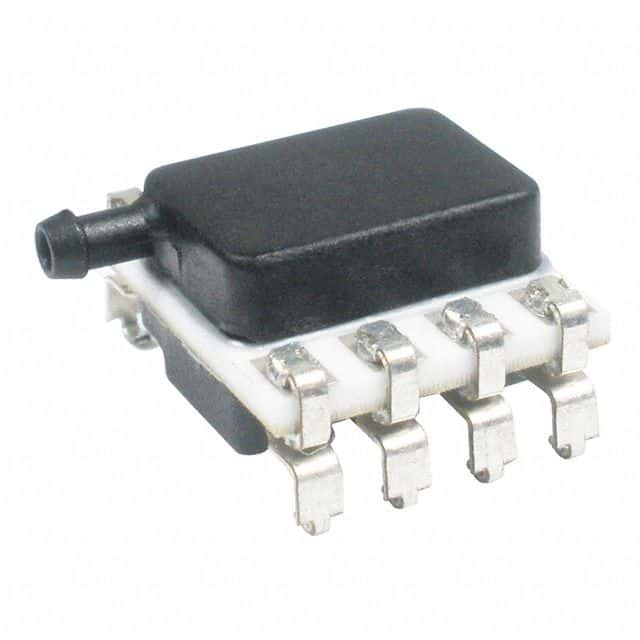

Product Images
