Honeywell
HSCMRRD2.5MDSA3
Peizoresistive Sensor, Differential, -.036Psi Min, 0.036Psi Max, 0.25%, 0.20-0.80V, Rectangular, Surface Mount, ROHS COMPLIANT, CERAMIC, SMT-8
PackageSMD/SMT
Current1.6mA
Quick Jump:
Technical Specifications
Honeywell HSCMRRD2.5MDSA3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
9.79PSI
Max Supply Voltage (DC)
3.33V
Min Supply Voltage (DC)
3.27V
Operating Pressure
0.04PSI
Output Type
Digital, SPI
Port Style
Barbed
Pressure Type
Differential
RoHS Compliant
Yes
Series
TruStability® HSC
Supply Current
1.6mA
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCMRRD2.5MDSA3 Datasheet
Download the complete datasheet for Honeywell HSCMRRD2.5MDSA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

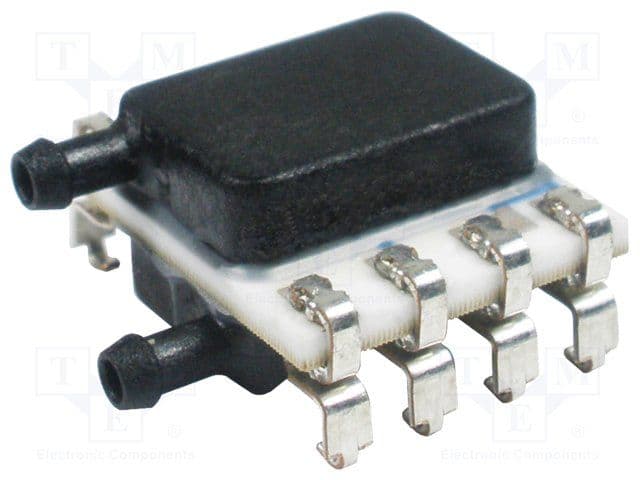

Product Images
