SPDT momentary snap action switch with screw terminals, designed for panel mounting. Features a side rotary actuator and a right-angle orientation. Rated for 7A current, 600VAC maximum voltage, and 115VDC. Operates within a temperature range of -12°C to 121°C. IP67, waterproof, and dust-tight ratings ensure durability. RoHS compliant.
Current Rating7A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell LSYAC3KQ-FP technical specifications.
General
Actuator Type
Rotary
Approvals
UL, CSA
Contact Type
Snap Action
Current Rating
7A
Depth
61.9mm
Height
106.78mm
Length
41.15mm
Max Operating Temperature
121°C
Min Operating Temperature
-12°C
Max Voltage Rating (AC)
600V
Mount
Chassis Mount, Screw
Orientation
Right Angle
Package Quantity
1
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LSY
Switch Function
On-Mom
Termination
Connector
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
115V
Width
1.62inch
Compliance
RoHS
Compliant
Datasheet
Honeywell LSYAC3KQ-FP Datasheet
Download the complete datasheet for Honeywell LSYAC3KQ-FP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

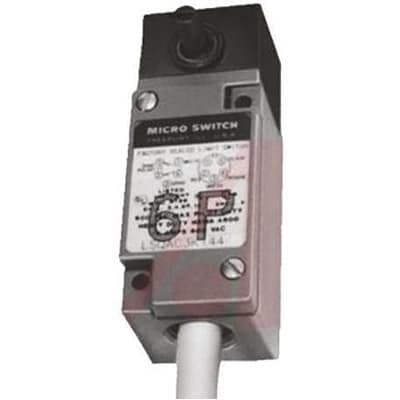

Product Images
