Cylindrical strain gauge pressure sensor with a 0.25% accuracy, designed for vented gauge pressure measurements up to 300 PSI. Features an analog voltage output ranging from 0.50-4.50V, with a typical operating voltage of 5V and current of 4mA. Operates across a wide temperature range of -40°C to 125°C, offering a 2ms response time and IP65 rating. Mounts via a threaded stud and is RoHS compliant.
Current4mA
Voltage Rating5V
MountingStud
Quick Jump:
Technical Specifications
Honeywell MLH100PGL06A technical specifications.
General
Accuracy
0.25%
Height
55mm
Lead Free
Lead Free
Length
27mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
300PSI
Max Supply Current
8mA
Max Supply Voltage
6V
Mount
Stud
Operating Pressure
100PSI
Operating Supply Current
4mA
Operating Supply Voltage
5V
Output Type
Analog Voltage, Voltage, Analog
Output Voltage
4V
Packaging
Bulk
Port Style
Threaded
Pressure Type
Vented Gauge
Primary Type
PRESSURE SENSOR
Ratings
IP65
Reach SVHC Compliant
No
Response Time
2ms
RoHS Compliant
Yes
Series
MLH
Supply Current
4mA
Termination
Cable
Voltage Rating
5V
DC Rated Voltage
5V
Weight
57g
Width
27mm
Compliance
RoHS
Compliant
Datasheet
Honeywell MLH100PGL06A Datasheet
Download the complete datasheet for Honeywell MLH100PGL06A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

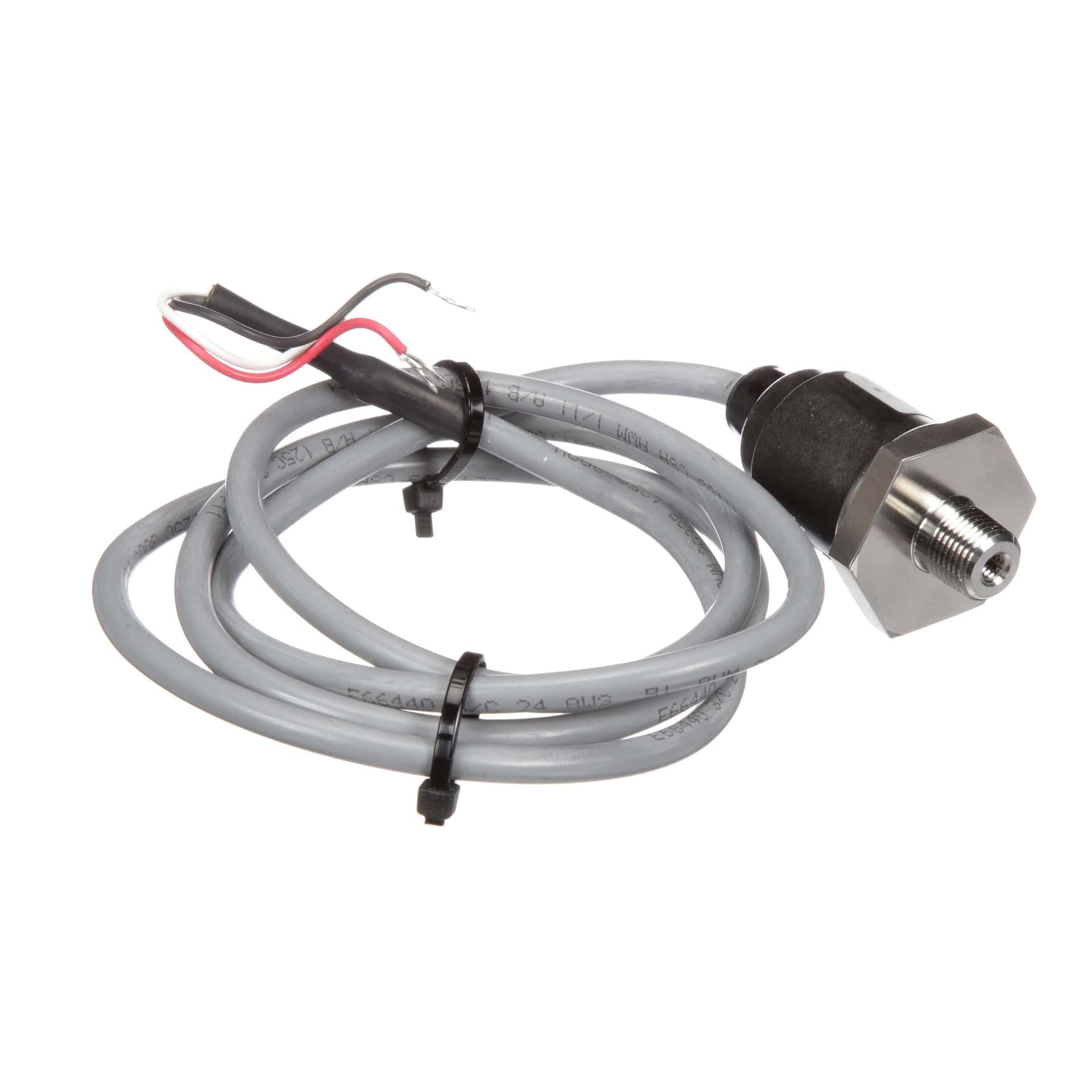

Product Images
