PackageSIP
Current1.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell NSCSHHN015PDUNV technical specifications.
General
Accuracy
0.25%
Package/Case
SIP
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
30PSI
Max Supply Voltage
12V
Min Supply Voltage
1.8V
Mount
Through Hole
Nominal Supply Current
1.5mA
Operating Pressure
15PSI
Operating Supply Voltage
5V
Output Type
Wheatstone Bridge, Analog
Port Style
Barbed
Pressure Type
Differential
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TruStability® NSC
Supply Current
1.5mA
Termination
PC Pin
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Honeywell NSCSHHN015PDUNV Datasheet
Download the complete datasheet for Honeywell NSCSHHN015PDUNV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

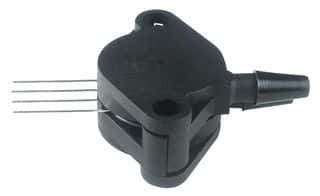

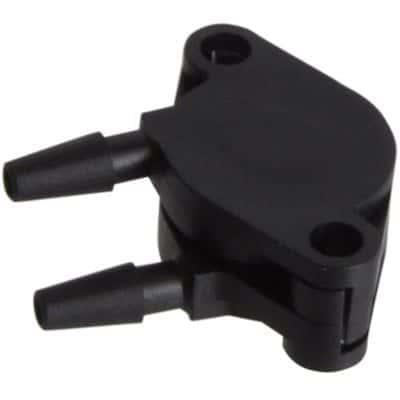

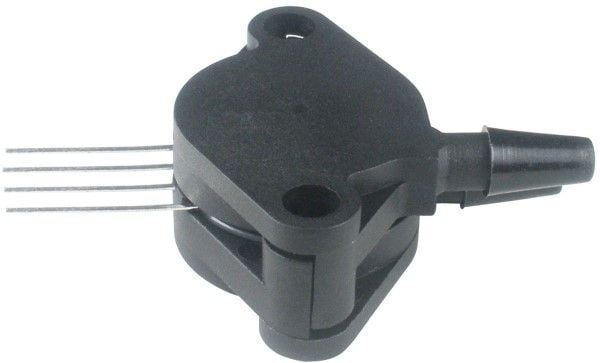

Product Images
