MountingThrough Hole, PCB, Panel
PolarityNPN
Power125mW
Quick Jump:
Technical Specifications
Honeywell SD2410-001 technical specifications.
General
Collector Emitter Breakdown Voltage
15V
Collector Emitter Voltage (VCEO)
15V
Collector-emitter Voltage-Max
15V
Fall Time
75us
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
125mW
Mount
Through Hole, PCB, Panel
Number of Elements
1
Orientation
Top View
Packaging
Bulk
Polarity
NPN
Power Dissipation
125mW
RoHS Compliant
No
Viewing Angle
48°
Wavelength
880nm
Compliance
RoHS
Not Compliant
Datasheet
Honeywell SD2410-001 Datasheet
Download the complete datasheet for Honeywell SD2410-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

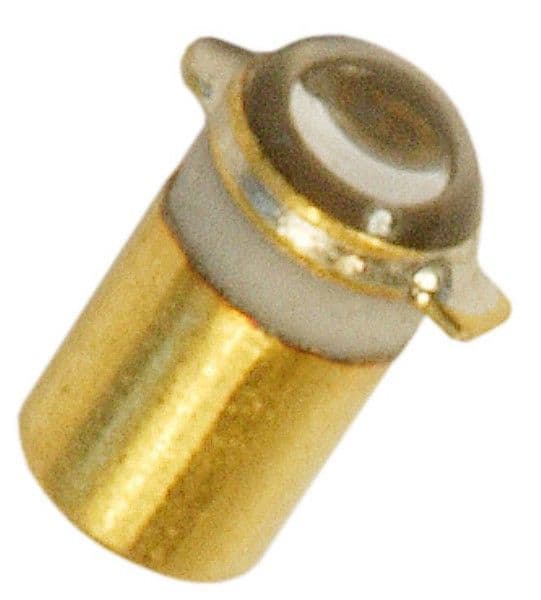

Product Images
