PackageTO-46
Voltage Rating15V
MountingThrough Hole
PolarityNPN
Quick Jump:
Technical Specifications
Honeywell SD5410-003 technical specifications.
General
Package/Case
TO-46
Collector Emitter Breakdown Voltage
15V
Collector Emitter Saturation Voltage
1.1V
Collector Emitter Voltage (VCEO)
15V
Collector-emitter Voltage-Max
15V
Fall Time
75us
Max Collector Current
8mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
150mW
Mount
Through Hole
Number of Elements
1
Orientation
Top View
Packaging
Bulk
Polarity
NPN
Power Consumption
150mW
Power Dissipation
150mW
Propagation Delay
75us
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Viewing Angle
12°
Voltage Rating
15V
DC Rated Voltage
15V
Compliance
RoHS
Not Compliant
Datasheet
Honeywell SD5410-003 Datasheet
Download the complete datasheet for Honeywell SD5410-003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

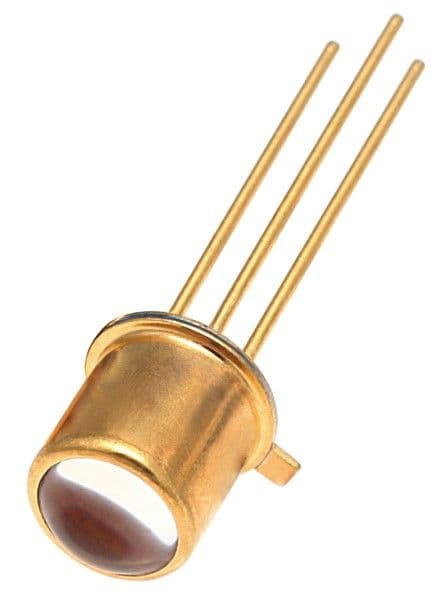

Product Images
