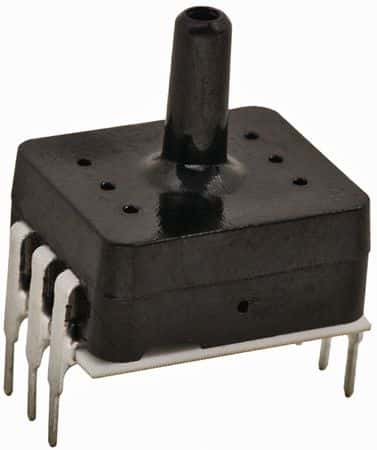

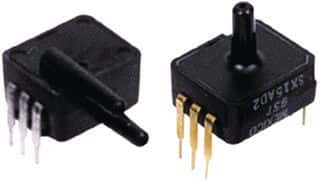

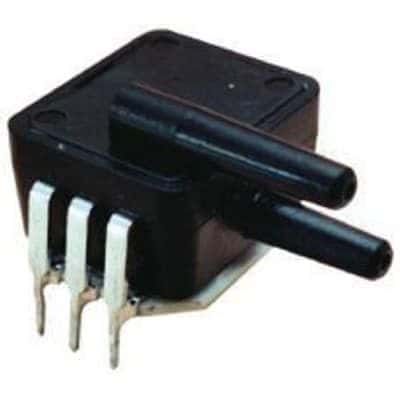

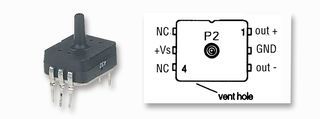

This piezoresistive pressure sensor measures gauge pressure from 0 to 15 PSI, with a maximum operating pressure of 30 PSI. It features an analog Wheatstone bridge output, providing 0-90mV with 1% accuracy and 0.2% linearity. The sensor operates within a temperature range of -40°C to 85°C and is housed in a DIP-6 plastic package with through-hole mounting. Key electrical specifications include a 12V reference voltage and a maximum supply voltage of 20V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SDX15G2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell SDX15G2 technical specifications.
| Accuracy | 1% |
| Package/Case | DIP |
| Height | 15.11mm |
| Input Resistance | 4kR |
| Length | 11.94mm |
| Linearity | 0.2% |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 30PSI |
| Max Supply Voltage | 20V |
| Mount | Through Hole |
| Operating Pressure | 15PSI |
| Output | ANALOG |
| Output Type | Wheatstone Bridge, Analog |
| Output Voltage | 90mV |
| Package Quantity | 25 |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reference Voltage | 12V |
| Response Time | 100us |
| RoHS Compliant | Yes |
| Series | SDX |
| Termination | PC Pin |
| DC Rated Voltage | 20V |
| Width | 13.97mm |
| RoHS | Compliant |
