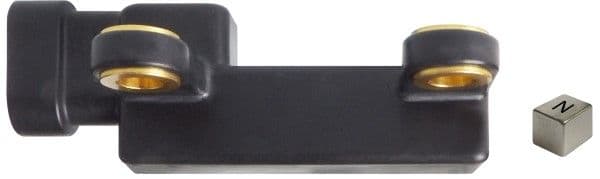

![SMART Position Sensor, SPS Series, 35 mm linear configuration, 0 mm to 35 mm [0 in to 1.38 in] sensing range, 0.5 Vdc to 4.5 Vdc analog output, magnet actuator included](https://static.datasheets.com/image/13602439-honeywell-sps-l035-lats-image.jpg)
Quick Jump:
Technical Specifications
Honeywell SPS-L035-LATS technical specifications.
General
| Linearity | 1% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 5V |
| Min Output Voltage | 0V |
| Max Supply Voltage | 5.24V |
| Mount | Chassis Mount |
| Nominal Supply Current | 20mA |
| Output Range | 0.55 ? 4.15 V dc |
| Overall Depth | 85mm |
| Packaging | Box |
| Ratings | IP67 |
| Resolution (um) | 0.04mm |
| Series | SPS |
| Termination | Connector |
| DC Rated Voltage | 4.75V |
Compliance
| RoHS | Compliant |
