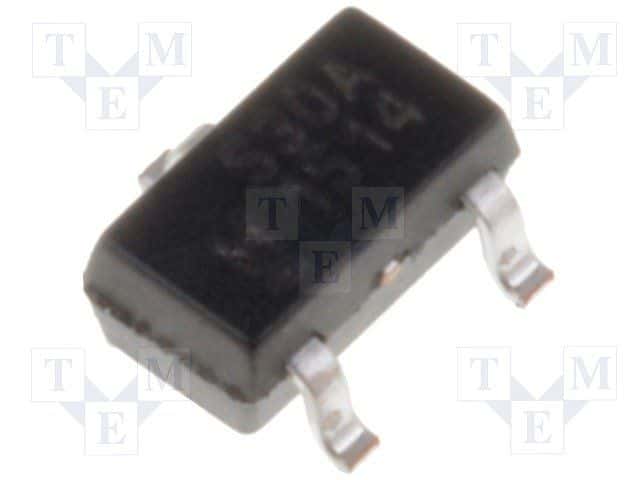

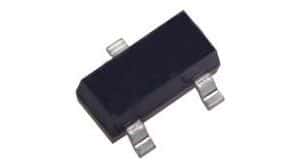

Linear Hall Effect Sensor IC, SOT-23-3 package, offering analog output with a 400mV typical voltage. Features a wide operating temperature range from -40°C to 125°C, with a 4µs response time. Designed for surface mount applications, this component operates with a supply voltage range of 4.5V to 24V and a maximum output current of 20mA. RoHS compliant and supplied on tape and reel.
Sign in to ask questions about the Honeywell SS30AT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-23-3 |
| Height | 0.161inch |
| Length | 0.161inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Supply Current | 10mA |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 6.5mA |
| Number of Contacts | 3 |
| Operating Supply Current | 11.3mA |
| Operating Supply Voltage | 12V |
| Output Current | 20mA |
| Output Type | Analog |
| Output Voltage | 400mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Response Time | 4us |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Type | Integrated Circuit (IC) |
| Width | 0.063inch |
| RoHS | Compliant |
Download the complete datasheet for Honeywell SS30AT to view detailed technical specifications.
