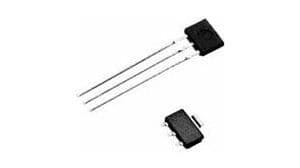

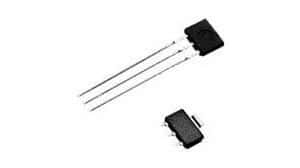

Linear Hall Effect Sensor IC, operating from 4.5V to 24V supply voltage, features a 20mA maximum output current and a 4µs response time. This bipolar sensor utilizes Hall Effect sensing and offers a digital output. Packaged in a TO-92 case with through-hole and surface mount capabilities, it operates across a temperature range of -40°C to 125°C.
Sign in to ask questions about the Honeywell SS40A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-92 |
| Height | 0.161inch |
| Leakage Current | 10uA |
| Length | 0.161inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 4.5V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole, Surface Mount |
| Nominal Supply Current | 6.5mA |
| Operating Supply Voltage | 12V |
| Output Current | 20mA |
| Output Type | Digital |
| Package Quantity | 1000 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 4us |
| RoHS Compliant | Yes |
| Sensing Method | Hall Effect |
| Series | SS40A |
| Supply Current | 10mA |
| Switching Current | 20mA |
| Termination | Through Hole |
| Thickness | 1.6mm |
| Type | Integrated Circuit (IC) |
| Width | 0.063inch |
| RoHS | Compliant |
