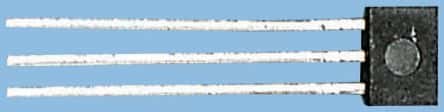

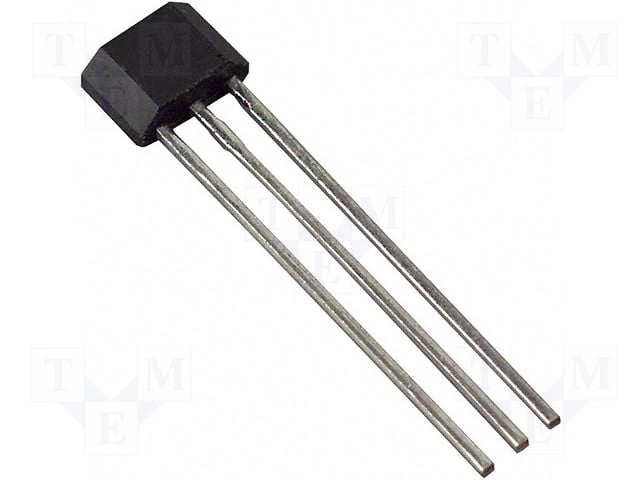

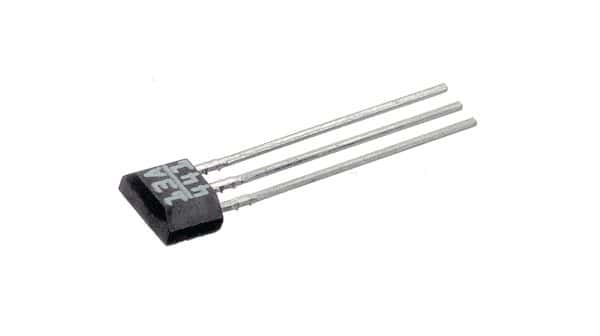

Unipolar Hall Effect Sensor IC, featuring a 3-pin TO-92 package for through-hole mounting. Operates with a supply voltage range of 3.8V to 30V DC, drawing a nominal 10mA. Delivers a digital output with a current rating of 20mA and an output voltage of 400mV. Designed for a wide operating temperature range from -40°C to 150°C.
Sign in to ask questions about the Honeywell SS443A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-92 |
| Contact Current Rating | 7.5mA |
| Depth | 1.57mm |
| Description | UNIPOLAR |
| Height | 3mm |
| Lead Free | Contains Lead |
| Leakage Current | 10uA |
| Length | 4.06mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Voltage | 400mV |
| Min Output Voltage | 400mV |
| Max Supply Current | 10mA |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 3.8V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3.8V |
| Mount | Through Hole, PCB |
| Nominal Supply Current | 10mA |
| Number of Contacts | 3 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 12V |
| Output Current | 20mA |
| Output Type | Digital |
| Output Voltage | 400mV |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensing Method | Hall Effect |
| Series | SS400 |
| Switching Current | 20mA |
| Termination | PCB |
| Thickness | 1.5mm |
| Type | Integrated Circuit (IC) |
| Width | 3mm |
| RoHS | Compliant |
