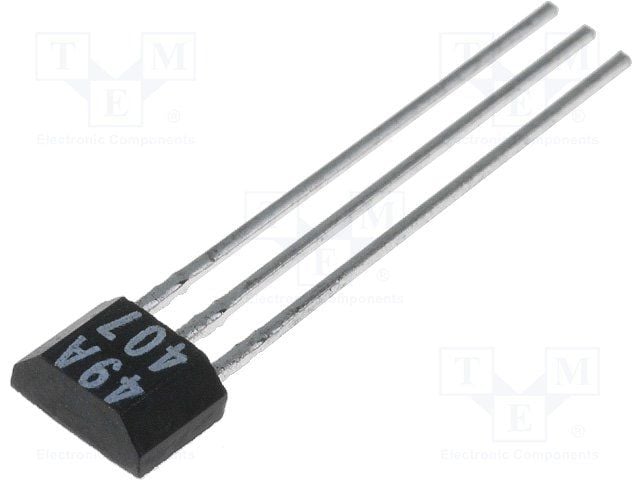

Linear, latching, omnipolar Hall Effect Sensor IC with a 3-pin radial package for through-hole mounting. Features a maximum output current of 20mA and a minimum output voltage of 400mV. Operates with a supply voltage range of 3.8V to 30V DC and a nominal supply current of 10mA. Offers a wide operating temperature range from -40°C to 150°C. RoHS compliant.
Sign in to ask questions about the Honeywell SS449A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Radial |
| Contact Current Rating | 7.5mA |
| Height | 1.6mm |
| Leakage Current | 10uA |
| Length | 4.1mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Min Output Voltage | 400mV |
| Max Supply Current | 10mA |
| Max Supply Voltage (DC) | 30V |
| Min Supply Voltage (DC) | 3.8V |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 3.8V |
| Mount | Through Hole |
| Nominal Supply Current | 10mA |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 12V |
| Output Current | 20mA |
| Output Voltage | 400mV |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SS400 |
| Type | Integrated Circuit (IC) |
| Width | 3mm |
| RoHS | Compliant |
