Honeywell
SS460P
Hall Effect Sensor, -5.5mT Min, 5.5mT Max, Rectangular, Through Hole Mount, TO-92, 3 PIN
PackageTO-92
Current3.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell SS460P technical specifications.
General
Package/Case
TO-92
Height
1.6mm
Leakage Current
10uA
Length
4.1mm
Logic Function
Latch
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Supply Current
6mA
Max Supply Voltage
24V
Min Supply Voltage
3V
Mount
Through Hole
Nominal Supply Current
3.5mA
Output Current
20mA
Output Voltage
26V
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
3.5mA
Type
Integrated Circuit (IC)
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Honeywell SS460P Datasheet
Download the complete datasheet for Honeywell SS460P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

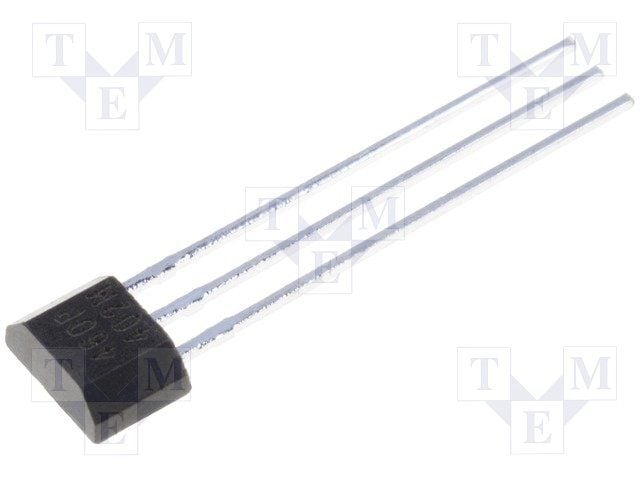

Product Images
