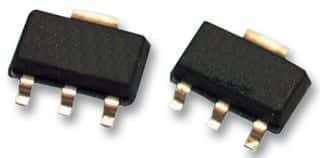

Linear Hall Effect Sensor IC, Surface Mount, SOT-89-3 package. Operates from 4.5V to 24V supply voltage with a nominal supply current of 6.5mA. Features a maximum output current of 20mA and a response time of 4µs. Sensitive to magnetic fields with a minimum threshold of -17mT and a maximum threshold of 17mT. Encased in a compact 4.4mm x 2.5mm x 2mm rectangular housing, this RoHS compliant component is suitable for a wide temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell SS50AT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-89-3 |
| Height | 2mm |
| Input Current | 6.5mA |
| Leakage Current | 10uA |
| Length | 4.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Voltage | 400mV |
| Min Output Voltage | 400mV |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 4.5V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 6.5mA |
| Number of Contacts | 3 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 12V |
| Output Current | 20mA |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Response Time | 4us |
| RoHS Compliant | Yes |
| Sensing Method | Hall Effect |
| Series | SS50AT |
| Supply Current | 10mA |
| Type | Integrated Circuit (IC) |
| Width | 2.5mm |
| RoHS | Compliant |
