Honeywell
SS513AT
Hall Effect Sensor, -14mT Min, 14mT Max, Plastic/epoxy, Rectangular, 3 Pin, Surface Mount, SOT-89, 4 PIN
PackageSOT-89
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell SS513AT technical specifications.
General
Package/Case
SOT-89
Leakage Current
10uA
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Supply Current
10mA
Max Supply Voltage (DC)
30V
Min Supply Voltage (DC)
3.8V
Max Supply Voltage
30V
Min Supply Voltage
3.8V
Mount
Surface Mount
Nominal Supply Current
10mA
Operating Supply Current
8.7mA
Operating Supply Voltage
12V
Output Current
20mA
Package Quantity
1000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SS5
Termination
Solder
Type
Integrated Circuit (IC)
Compliance
RoHS
Compliant
Datasheet
Honeywell SS513AT Datasheet
Download the complete datasheet for Honeywell SS513AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

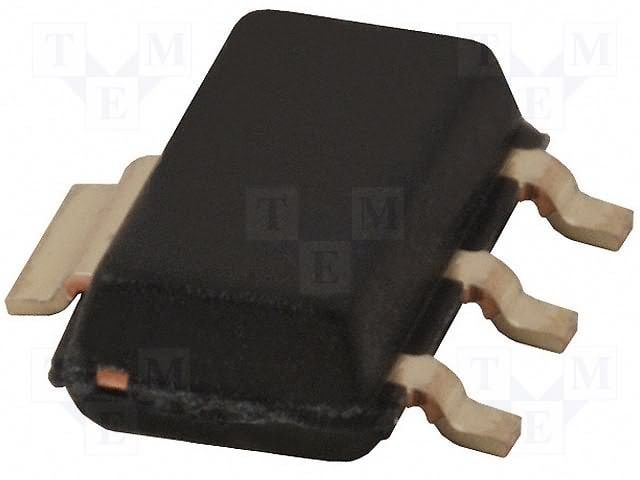

Product Images
