Honeywell
SS51T
Hall Effect Sensor, -14mT Min, 14mT Max, Plastic/epoxy, Rectangular, 3 Pin, Surface Mount, SOT-89, 4 PIN
PackageTO-243AA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell SS51T technical specifications.
General
Package/Case
TO-243AA
Lead Free
Lead Free
Leakage Current
10uA
Length
4.5mm
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Supply Current
10mA
Max Supply Voltage
24V
Min Supply Voltage
4.5V
Mount
Surface Mount
Nominal Supply Current
8.7mA
Operating Supply Current
8.7mA
Operating Supply Voltage
12V
Output Current
20mA
Package Quantity
1
Packaging
Cut Tape
RoHS Compliant
Yes
Series
SS5
Thickness
1.5mm
Type
Integrated Circuit (IC)
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Honeywell SS51T Datasheet
Download the complete datasheet for Honeywell SS51T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

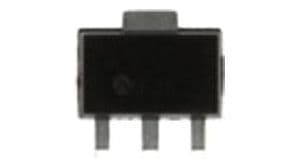

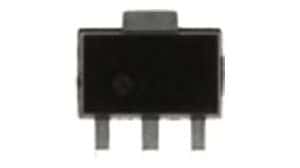

Product Images
