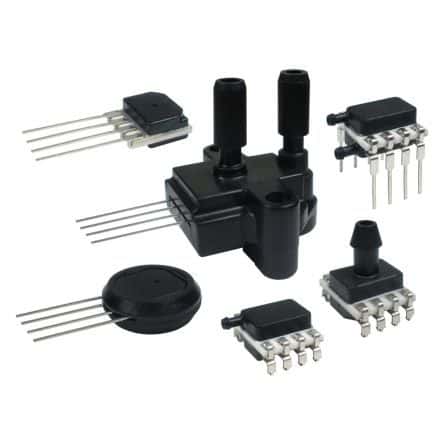

Digital piezoresistive pressure sensor, gauge type, with a 0 to 150 PSI operating pressure range and a maximum pressure rating of 250 PSI. Features 0.25% accuracy, 1ms response time, and a 0.20-0.80V output. Operates from 3V to 3.3V supply voltage with a nominal supply current of 1.6mA. Encased in a DIP package with through-hole mounting and PC pin termination, this RoHS compliant sensor is suitable for environmental monitoring applications.
PackageDIP
Current1.6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell SSCDANN150PG2A3 technical specifications.
General
| Accuracy | 0.25% |
| Package/Case | DIP |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 250PSI |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Nominal Supply Current | 1.6mA |
| Operating Pressure | 150PSI |
| Output Type | I2C, Digital |
| Port Style | Barbed |
| Pressure Type | Gauge |
| Radiation Hardening | No |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | TruStability® SSC |
| Supply Current | 1.6mA |
| Termination | PC Pin |
| DC Rated Voltage | 3.3V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell SSCDANN150PG2A3 Datasheet
Download the complete datasheet for Honeywell SSCDANN150PG2A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
