Honeywell
SSCMNNN030PA2A3
Peizoresistive Sensor, Absolute, 0Psi Min, 30Psi Max, 0.25%, 0.20-0.80V, Rectangular, Surface Mount, ROHS COMPLIANT, CERAMIC, SMT-8
PackageSMD/SMT
Current1.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell SSCMNNN030PA2A3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Height
5.44mm
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
60PSI
Max Supply Voltage
3.3V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
1.6mA
Operating Pressure
30PSI
Output Type
I2C, Digital
Package Quantity
20
Port Style
No Port
Pressure Type
Absolute
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® SSC
Supply Current
1.6mA
Termination
SMD/SMT
DC Rated Voltage
3.3V
Width
13.3mm
Compliance
RoHS
Compliant
Datasheet
Honeywell SSCMNNN030PA2A3 Datasheet
Download the complete datasheet for Honeywell SSCMNNN030PA2A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

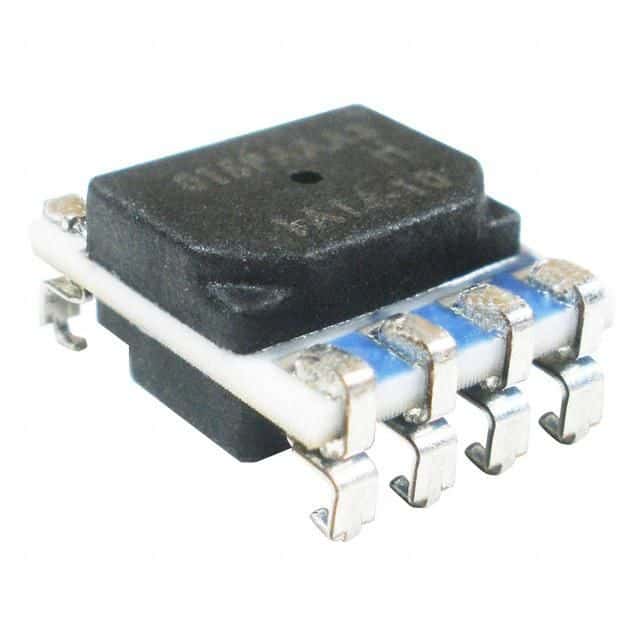

Product Images
