PackageSMD/SMT
Current1.6mA
Quick Jump:
Technical Specifications
Honeywell SSCMRNN015PA3A3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
30PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.3V
Min Supply Voltage
3V
Nominal Supply Current
1.6mA
Operating Pressure
15PSI
Output Type
I2C, Digital
Port Style
Barbed
Pressure Type
Absolute
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® SSC
Supply Current
1.6mA
Termination
SMD/SMT
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell SSCMRNN015PA3A3 Datasheet
Download the complete datasheet for Honeywell SSCMRNN015PA3A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

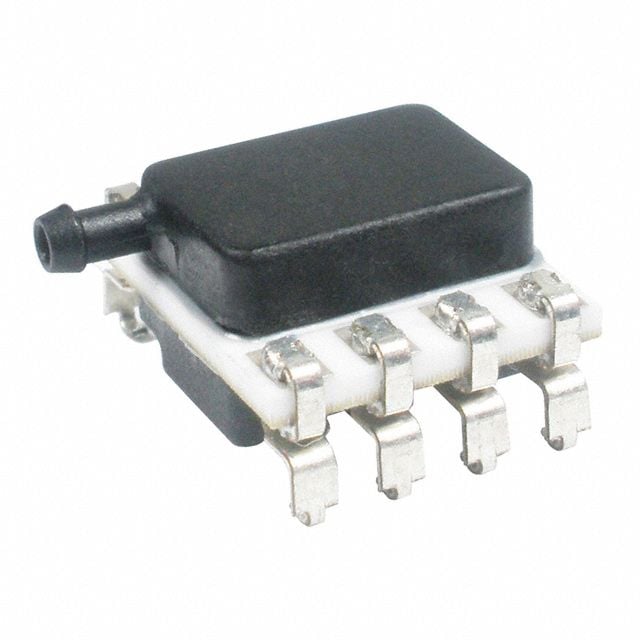

Product Images
