Technical Specifications
Honeywell SSCSANN001PG2A3 technical specifications.
General
Accuracy
0.25%
Package/Case
SIP
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
10PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.3V
Min Supply Voltage
3V
Nominal Supply Current
1.6mA
Operating Pressure
1PSI
Output Type
Digital, I2C
Port Style
Barbed
Pressure Type
Vented Gauge
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® SSC
Supply Current
1.6mA
Termination
PC Pin
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell SSCSANN001PG2A3 Datasheet
Download the complete datasheet for Honeywell SSCSANN001PG2A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

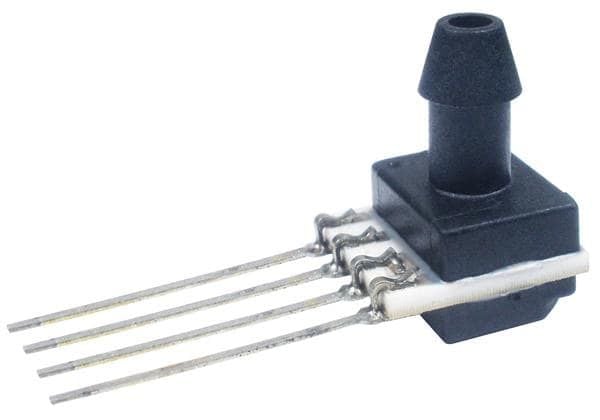

Product Images
