Technical Specifications
Honeywell SSCSANT100PGAB3 technical specifications.
General
Accuracy
0.25%
Package/Case
SIP
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
250PSI
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Operating Pressure
100PSI
Operating Supply Voltage
3.3V
Output Type
Voltage, Analog, Digital
Package Quantity
20
Port Style
Barbed
Pressure Type
Vented Gauge
Series
TruStability® SSC
Supply Current
1.6mA
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Honeywell SSCSANT100PGAB3 Datasheet
Download the complete datasheet for Honeywell SSCSANT100PGAB3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

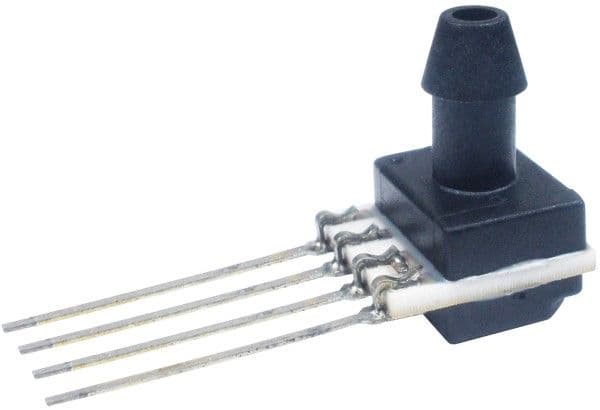

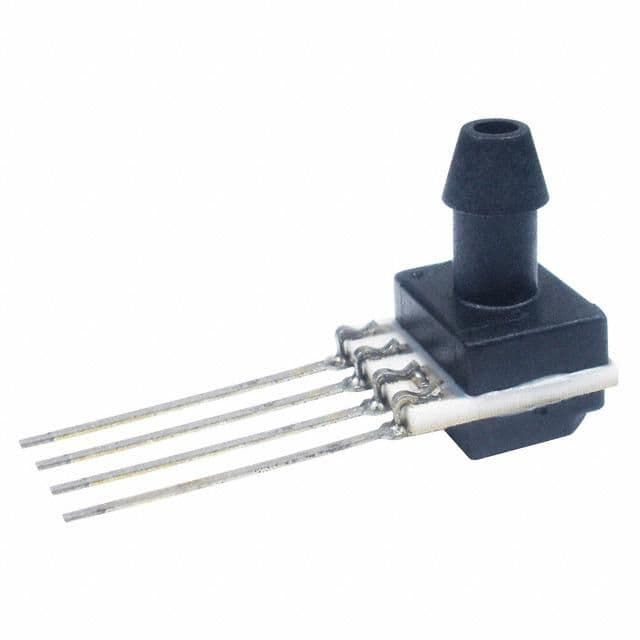

Product Images
