SPDT momentary snap acting switch featuring quick connect terminals and panel mount capability. Offers a 1A current rating at 125V AC, with gold contact material for reliable performance. Designed for a wide operating temperature range from -40°C to 82°C, boasting 100,000 electrical and 10,000,000 mechanical life cycles. Includes a 340mm actuator length and chassis or screw mounting options.
Package125
Current Rating1A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell V7-7D17D8-207 technical specifications.
General
Actuator Length
340mm
Package/Case
125
Contact Material
Gold
Current Rating
1A
Depth
10.16mm
Differential Travel
107mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
46.61mm
Max Current Rating
1A
Max Operating Temperature
82°C
Max Voltage Rating (AC)
125V
Mechanical Life
10000000Cycles
Min Operating Temperature
-40°C
Mount
Chassis Mount, Panel, Screw
Operating Force
139N
Operating Position
0.05inch
Orientation
Straight
Overtravel
127mm
Package Quantity
100
Packaging
Bulk
Pretravel
305mm
RoHS Compliant
Yes
Sealable
No (Without)
Series
V7
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Weight
8g
Compliance
RoHS
Compliant
Datasheet
Honeywell V7-7D17D8-207 Datasheet
Download the complete datasheet for Honeywell V7-7D17D8-207 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

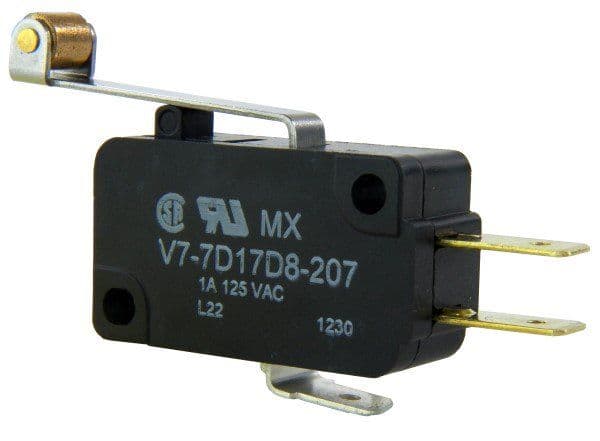

Product Images
