Snap action switch featuring a straight leaf lever actuator, SPST throw configuration, and normally open (N.O.) contact. Rated for 16A at 480VAC and 250VDC, with a 125V AC/DC rating. Offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. Chassis mountable via screw terminals, with silver contact material and a 139N operating force.
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell YZ-2RL technical specifications.
General
Actuator Length
4949mm
Contact Material
Silver
Depth
17.45mm
Differential Travel
127mm
Length
61.47mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Screw
Operating Force
139N
Operating Position
1748mm
Orientation
Straight
Overtravel
152mm
Package Quantity
5
Packaging
Bulk
RoHS Compliant
Yes
Sealable
No (Without)
Series
YZ
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell YZ-2RL Datasheet
Download the complete datasheet for Honeywell YZ-2RL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

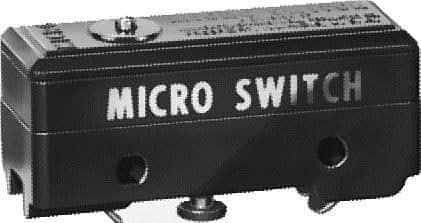

Product Images
