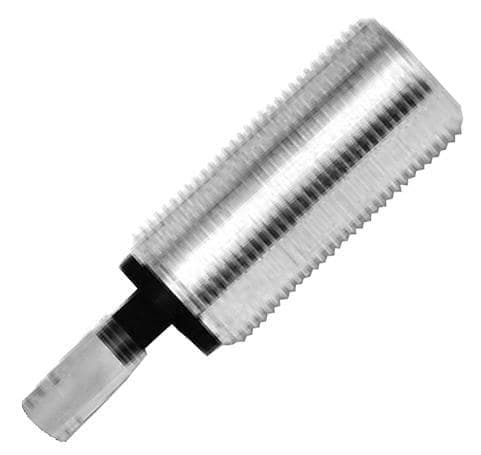

Hall effect sensor with a 30mA output current, designed for proximity sensing. Features a cylindrical aluminum package with ferrite actuator, operating from 4V to 24V DC supply. Offers a digital output with a minimum voltage of 600mV and a maximum switching current of 30mA. Rated IP67 for environmental protection, this sensor operates across a temperature range of -40°C to 125°C with a maximum frequency of 15kHz. Panel mountable with wire lead termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell ZH10 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Ferrite |
| Package/Case | Aluminum |
| Frequency | 15kHz |
| Lead Free | Exempt |
| Length | 25.4mm |
| Max Frequency | 15kHz |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 30mA |
| Min Output Voltage | 600mV |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 4V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 4V |
| Mount | Panel |
| Output Current | 30mA |
| Output Type | Digital |
| Output Voltage | 600mV |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Switching Current | 30mA |
| Termination | Wire Leads |
| Type | Hall Effect Sensor |
| Width | 11.9mm |
| RoHS | Not Compliant |
