SPDT momentary snap acting switch with solder terminals and a pin plunger actuator. Features a 100mA contact current rating, gold-plated contacts, and a polyamide actuator. Operates within a temperature range of -40°C to 85°C with a 125V AC and 30V DC voltage rating. Offers 10,000 electrical cycles and 1,000,000 mechanical cycles. Mounts via chassis, through hole, screw, or solder.
Package125
Current Rating100mA
MountingChassis Mount, Through Hole, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell ZM10B10A01 technical specifications.
General
| Actuator Material | Polyamide |
| Actuator Type | PIN PLUNGER |
| Package/Case | 125 |
| Contact Current Rating | 100mA |
| Contact Material | Gold, Silver |
| Contact Plating | Gold |
| Current Rating | 100mA |
| Depth | 6.4mm |
| Electrical Life | 10000Cycles |
| Length | 19.8mm |
| Max Current Rating | 100mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 125V |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Through Hole, Screw, Solder |
| Operating Position | 0.012inch |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Pretravel | 11mm |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | ZM |
| Switch Function | On-Mom |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 30V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell ZM10B10A01 Datasheet
Download the complete datasheet for Honeywell ZM10B10A01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

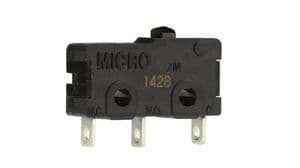

Product Images
