Idec
ABFD220N-R
Switch Push Button N.O. DPST Extended Round Button 10A 440VAC 220VDC Momentary Contact Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec ABFD220N-R technical specifications.
General
Actuator Color
Red
Actuator Length
5.5mm
Contact Material
Silver
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mechanical Life
5000000Cycles
Mount
Panel
Orientation
Straight
Termination
Screw
Throw Configuration
DPST
Compliance
RoHS
Not Compliant
Datasheet
Idec ABFD220N-R Datasheet
Download the complete datasheet for Idec ABFD220N-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

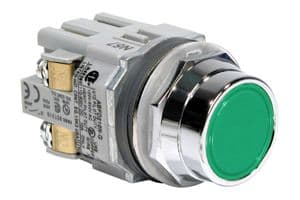

Product Images
