Idec
AL6M-M14-W
Switch Push Button N.O./N.C. DPDT Round Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec AL6M-M14-W technical specifications.
General
Actuator Color
White
Contact Material
Gold, Silver
Electrical Life
100000Cycles
Illumination Color
White
Illumination Type
LED
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
1000000Cycles
Mount
Panel
Orientation
Straight
Termination
Solder
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Idec AL6M-M14-W Datasheet
Download the complete datasheet for Idec AL6M-M14-W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

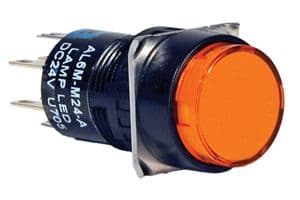

Product Images
