Technical Specifications
Idec AL6M-M24P-G technical specifications.
General
Actuator Color
Green
Approvals
UL, CSA, CE
Color
Green
Contact Current Rating
1A
Contact Material
Gold, Silver
Current Rating
1A
Diameter
18mm
Electrical Life
100000Cycles
Illumination Color
Green
Illumination Type
LED
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
1000000Cycles
Mount
Panel
Number of Poles
2
Orientation
Straight
Ratings
IP65
Reach SVHC Compliant
Unknown
Termination
Solder
Throw Configuration
DPDT
Voltage Rating (AC)
240V
Compliance
RoHS
Compliant
Datasheet
Idec AL6M-M24P-G Datasheet
Download the complete datasheet for Idec AL6M-M24P-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

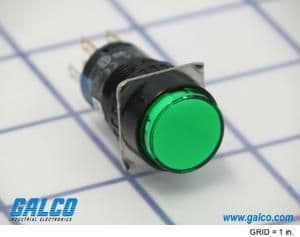

Product Images
