Idec
AL6Q-M14-R
Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Momentary Contact Quick Connect/Solder Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec AL6Q-M14-R technical specifications.
General
Actuator Color
Red
Contact Material
Gold, Silver
Electrical Life
100000Cycles
Illumination Color
Red
Illumination Type
LED
Max Operating Temperature
55°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
1000000Cycles
Min Operating Temperature
-25°C
Mount
Panel
Orientation
Straight
Ratings
IP65
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Solder
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Idec AL6Q-M14-R Datasheet
Download the complete datasheet for Idec AL6Q-M14-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

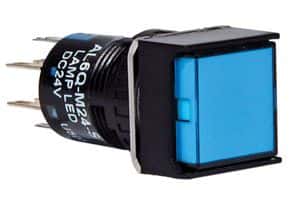

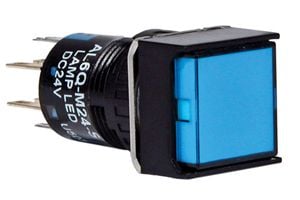

Product Images
