Idec
AL8Q-M11-G
Switch Push Button N.O./N.C. SPDT Square Button 1A 250VAC 250VDC Momentary Contact Solder Tab Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec AL8Q-M11-G technical specifications.
General
Actuator Color
Green
Actuator Length
3.5mm
Contact Material
Gold, Silver
Electrical Life
100000Cycles
Illumination Color
Green
Illumination Type
LED
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
200000Cycles
Mount
Panel
Orientation
Straight
RoHS Compliant
No
Termination
Solder
Throw Configuration
SPDT
Compliance
RoHS
Not Compliant
Datasheet
Idec AL8Q-M11-G Datasheet
Download the complete datasheet for Idec AL8Q-M11-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

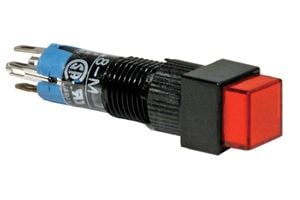

Product Images
