Idec
ALQW2B9911-R-120V
Switch Push Button N.O./N.C. DPST Extended Square Button 10A 440VAC 220VDC 745.7VA Momentary Contact Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec ALQW2B9911-R-120V technical specifications.
General
Actuator Color
Red
Contact Material
Silver
Electrical Life
10000000Cycles
Illumination Color
Red
Illumination Type
Lamp
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mechanical Life
5000000Cycles
Mount
Panel
Orientation
Straight
Termination
Contact Block
Throw Configuration
DPST
Compliance
RoHS
Compliant
Datasheet
Idec ALQW2B9911-R-120V Datasheet
Download the complete datasheet for Idec ALQW2B9911-R-120V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

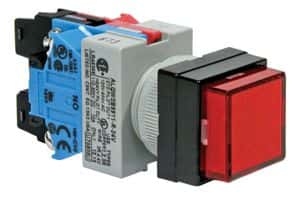

Product Images
