Idec
AS6Q-3Y2
Switch Selector N.O./N.C. DPDT 45° Knob 1A 250VAC 250VDC Quick Connect/Solder 250000Cycles Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec AS6Q-3Y2 technical specifications.
General
Contact Material
Gold, Silver
Electrical Life
100000Cycles
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250V
Mechanical Life
250000Cycles
Mount
Panel
Number of Positions
3
Orientation
Straight
Ratings
IP40
Termination
Solder
Throw Configuration
DPDT
Compliance
RoHS
Unconfirmed
Datasheet
Idec AS6Q-3Y2 Datasheet
Download the complete datasheet for Idec AS6Q-3Y2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

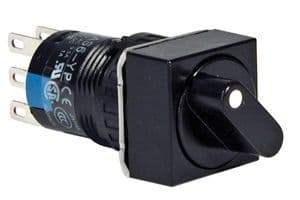

Product Images
