This panel mount selector switch features a silver contact material and a maximum operating temperature of 30°C. It has a mechanical life of 500,000 cycles and is rated for 10A of contact current. The switch is illuminated and has a 90° index angle. It is compliant with RoHS and has an IP65 rating, making it suitable for use in harsh environments. The switch is approved by UL, CSA, CE, and TUV.
MountingPanel
Quick Jump:
Technical Specifications
Idec ASW210 technical specifications.
General
| Approvals | UL, CSA, CE, TUV |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Illumination Type | Illuminated |
| Index Angle | 90° |
| Max Operating Temperature | 30°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 220V |
| Mechanical Life | 500000Cycles |
| Mount | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Ratings | IP65 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 220V |
Compliance
| RoHS | Compliant |
Datasheet
Idec ASW210 Datasheet
Download the complete datasheet for Idec ASW210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

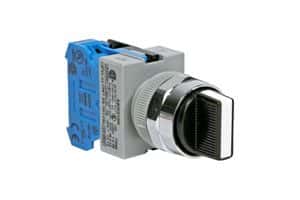

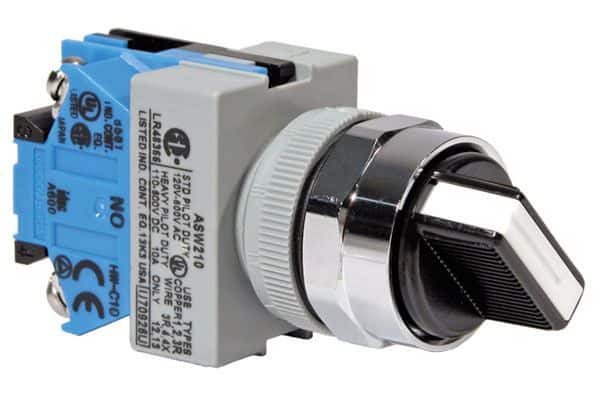

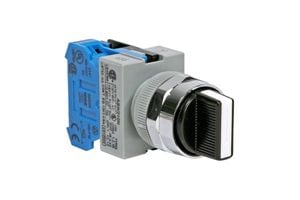

Product Images
