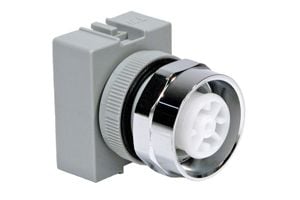

Idec
ASW320
Switch Selector N.O. DPST 45° Knob 10A 440VAC 220VDC 745.7VA Screw 500000Cycles Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec ASW320 technical specifications.
General
Contact Material
Silver
Illumination Type
Non-Illuminated, Illuminated
Index Angle
45°
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mechanical Life
500000Cycles
Mount
Panel
Number of Poles
2
Number of Positions
3
Orientation
Straight
Ratings
IP65, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
Series
TW
Termination
Screw
Throw Configuration
DPST
Voltage Rating (AC)
110V
DC Rated Voltage
24V
Compliance
RoHS
Compliant
Datasheet
Idec ASW320 Datasheet
Download the complete datasheet for Idec ASW320 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
