Package600
Voltage600V
Current50A
Voltage Rating600V
Quick Jump:
Technical Specifications
Idec BNH50W technical specifications.
General
Approvals
UL, CSA, TUV
Package/Case
600
Color
Black
Current
50A
Current Rating
50A
Insulation Material
PPE
Max Current Rating
50A
Number of Circuits
1
Number of Contacts
2
Number of Levels
1
Number of Poles
1
Number of Positions
2
Orientation
Straight
Pitch
24.4mm
RoHS Compliant
Yes
Series
BNH
Terminal Width
15.5mm
Termination
Screw
Voltage
600V
Voltage Rating
600V
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
6AWG
Wire/Cable Gauge
16AWG
Compliance
RoHS
Compliant
Datasheet
Idec BNH50W Datasheet
Download the complete datasheet for Idec BNH50W to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

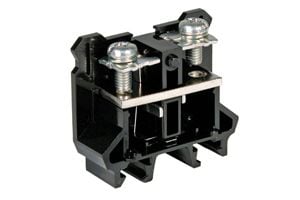

Product Images
