Idec
HA1L-M3C54-G
Switch Push Button N.O./N.C. SPDT Flush Square Button 5A 250VAC 125VDC Momentary Contact Quick Connect/Solder Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec HA1L-M3C54-G technical specifications.
General
Actuator Color
Green
Actuator Material
Polyarylate
Contact Material
Silver
Electrical Life
100000Cycles
Illumination Color
Green
Illumination Type
LED
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
125V
Mechanical Life
100000Cycles
Mount
Panel
Orientation
Straight
Termination
Solder
Throw Configuration
SPDT
Compliance
RoHS
Compliant
Datasheet
Idec HA1L-M3C54-G Datasheet
Download the complete datasheet for Idec HA1L-M3C54-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

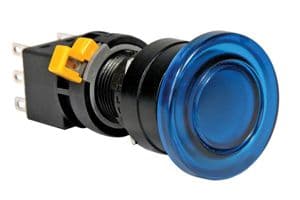

Product Images
