Idec
HW1B-A2F01-R
Switch Push Button N.C. SPST Extended Round Button 10A 440VAC 220VDC 745.7VA Maintained Contact Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec HW1B-A2F01-R technical specifications.
General
Actuator Color
Red
Actuator Length
5.5mm
Contact Material
Silver
Electrical Life
10000000Cycles
Max Operating Temperature
50°C
Mechanical Life
500000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mount
Panel
Orientation
Straight
Termination
Contact Block
Throw Configuration
SPST
Compliance
RoHS
Not Compliant
Datasheet
Idec HW1B-A2F01-R Datasheet
Download the complete datasheet for Idec HW1B-A2F01-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

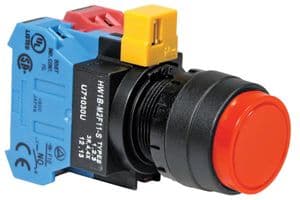

Product Images
