Technical Specifications
Idec HW1B-V4F11-Y technical specifications.
General
| Actuator Color | Yellow |
| Actuator Diameter | 40mm |
| Contact Material | Silver |
| Depth | 40mm |
| Height | 82.2mm |
| Length | 45.7mm |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 220V |
| Mechanical Life | 500000Cycles |
| Mount | Panel |
| Orientation | Straight |
| Ratings | IP20 |
| Termination | Screw |
| Throw Configuration | SPST |
Compliance
| RoHS | Not Compliant |
Datasheet
Idec HW1B-V4F11-Y Datasheet
Download the complete datasheet for Idec HW1B-V4F11-Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

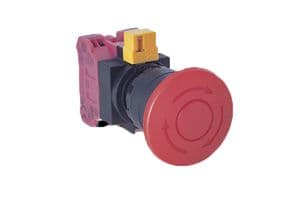

Product Images
