Idec
HW1B-Y2F01-R
Switch Emergency Stop N.C. SPST Mushroom Button 10A 440VAC 220VDC 745.7VA Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec HW1B-Y2F01-R technical specifications.
General
Actuator Diameter
40mm
Approvals
UL, CSA, VDE, CE, TUV, CCC, EN
Color
Red, Yellow
Contact Material
Silver
Depth
25.5mm
Head Diameter
40mm
Length
29.4mm
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Mount
Panel
Number of Poles
1
Operating Supply Voltage
440V
Ratings
IP65
Series
HW
Termination
Screw
Throw Configuration
SPST
Voltage Rating (AC)
440V
Width
41.4mm
Compliance
RoHS
Compliant
Datasheet
Idec HW1B-Y2F01-R Datasheet
Download the complete datasheet for Idec HW1B-Y2F01-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

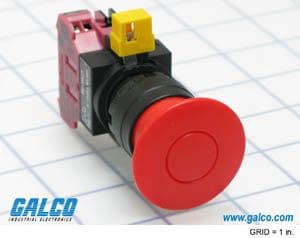

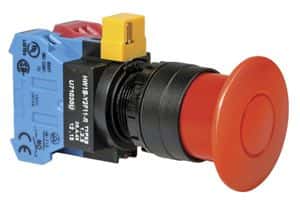

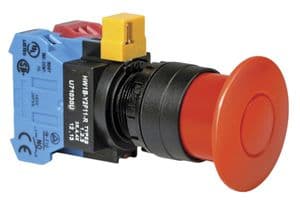

Product Images
