Idec
HW1X-BV411-R
Switch Emergency Stop N.O./N.C. SPST/SPST Mushroom Button 10A 440VAC 220VDC 745.7VA Screw Panel Mount
MountingPanel
Quick Jump:
Technical Specifications
Idec HW1X-BV411-R technical specifications.
General
Actuator Color
Red
Actuator Diameter
40mm
Color
Red
Contact Material
Silver
Contact Type
1 Normally Open, 1 Normally Closed
Depth
70mm
Diameter
22mm
Length
70mm
Material
Plastic
Max Operating Temperature
50°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
440V
Max Voltage Rating (DC)
220V
Mechanical Life
500000Cycles
Mount
Panel
Orientation
Straight
Ratings
IP65
Series
HW
Termination
Screw
Throw Configuration
DPST, SPST
Compliance
RoHS
Compliant
Datasheet
Idec HW1X-BV411-R Datasheet
Download the complete datasheet for Idec HW1X-BV411-R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

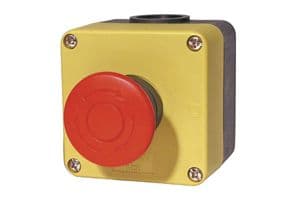

Product Images
